The Cam-Lock Nose Button Indicator fits a bowstring of average diameter .084″. For example, all Cam-Lock products fit these combinations of bowstring:
BCY X99 with 28 strands of string = .084″
BCY X with 24 strands of string = .084″

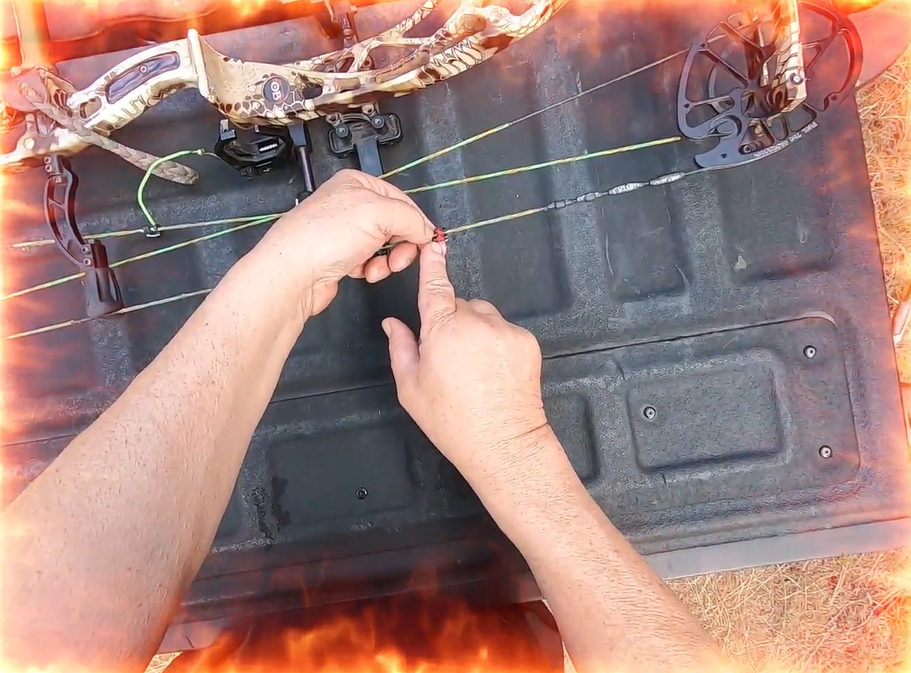

Installation Instructions:
- Rotate the midsection cam away from the two end hooks, and while the hook area is vacant, snap Nose Button (NB) onto the bowstring.
- White vertical lines face towards the archer while at full draw.
- Follow the contour of the mid handle cam to lock NB onto the bowstring, while doing the opposite to unlock the cam.
- Hold the end hooks tightly with fingers while closing the mid cam.
- Be sure that the top white vertical line and the mid cam line are lined up vertically to ensure the accessory is attached properly to the bow string.
- Top white line UP is the orientation for right-hand shooters, and DOWN for left-hand shooters.
- To adjust the NB, simply move the midsection handle the opposite direction of the handle’s natural arc to unlock.
- To adjust the elevation or rotation of the NB, simply unlock the Cam-Lock handle on the mid cam to make the necessary changes.

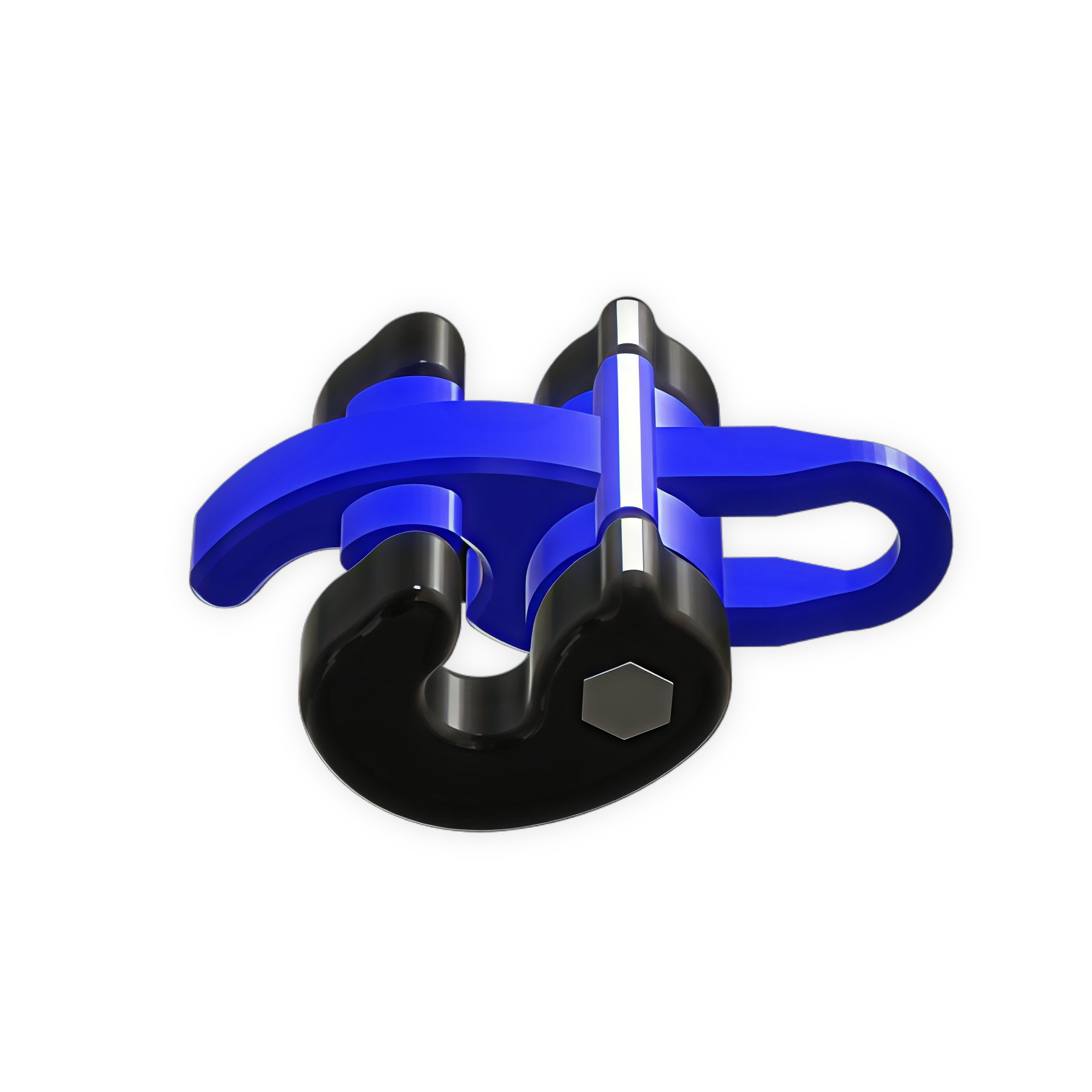

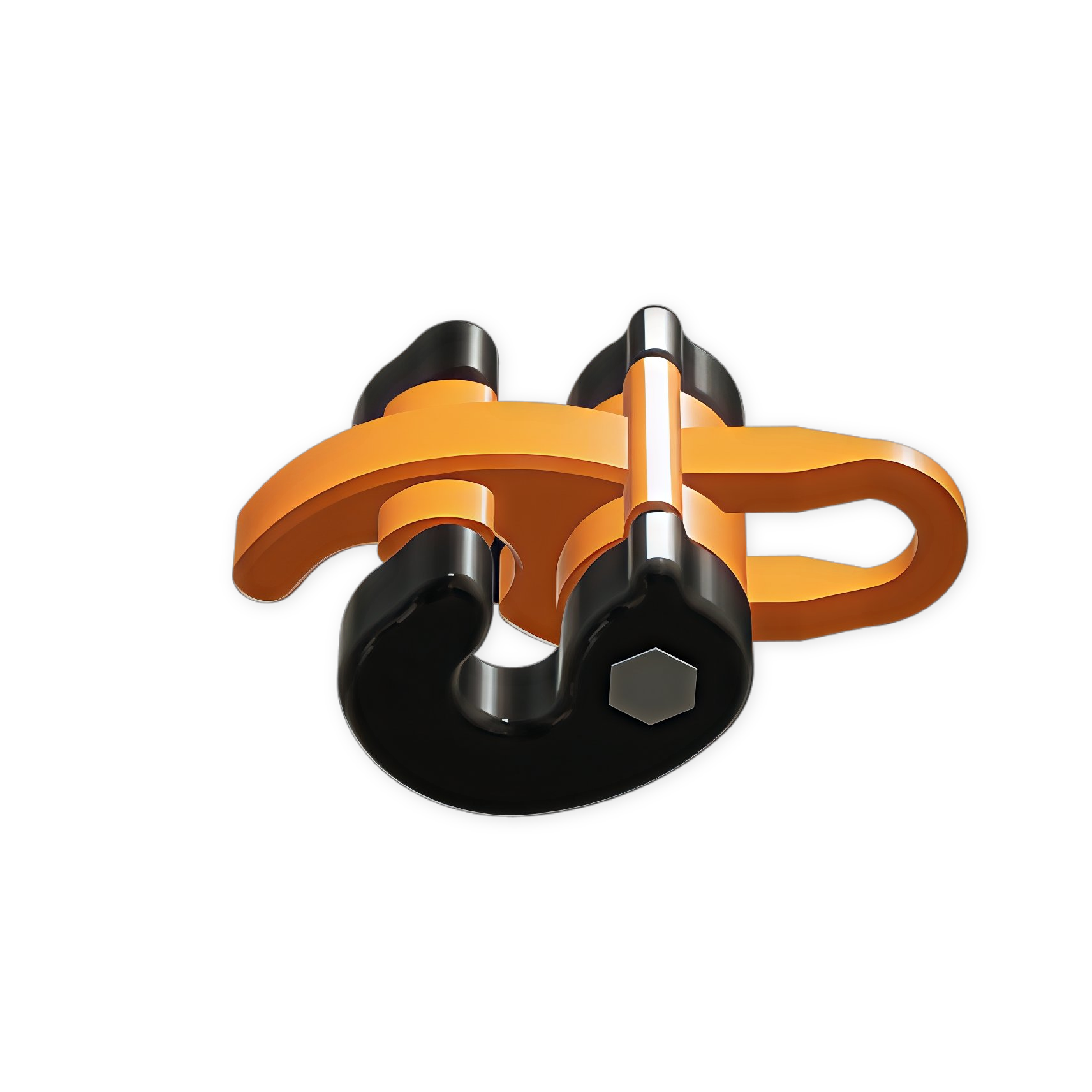

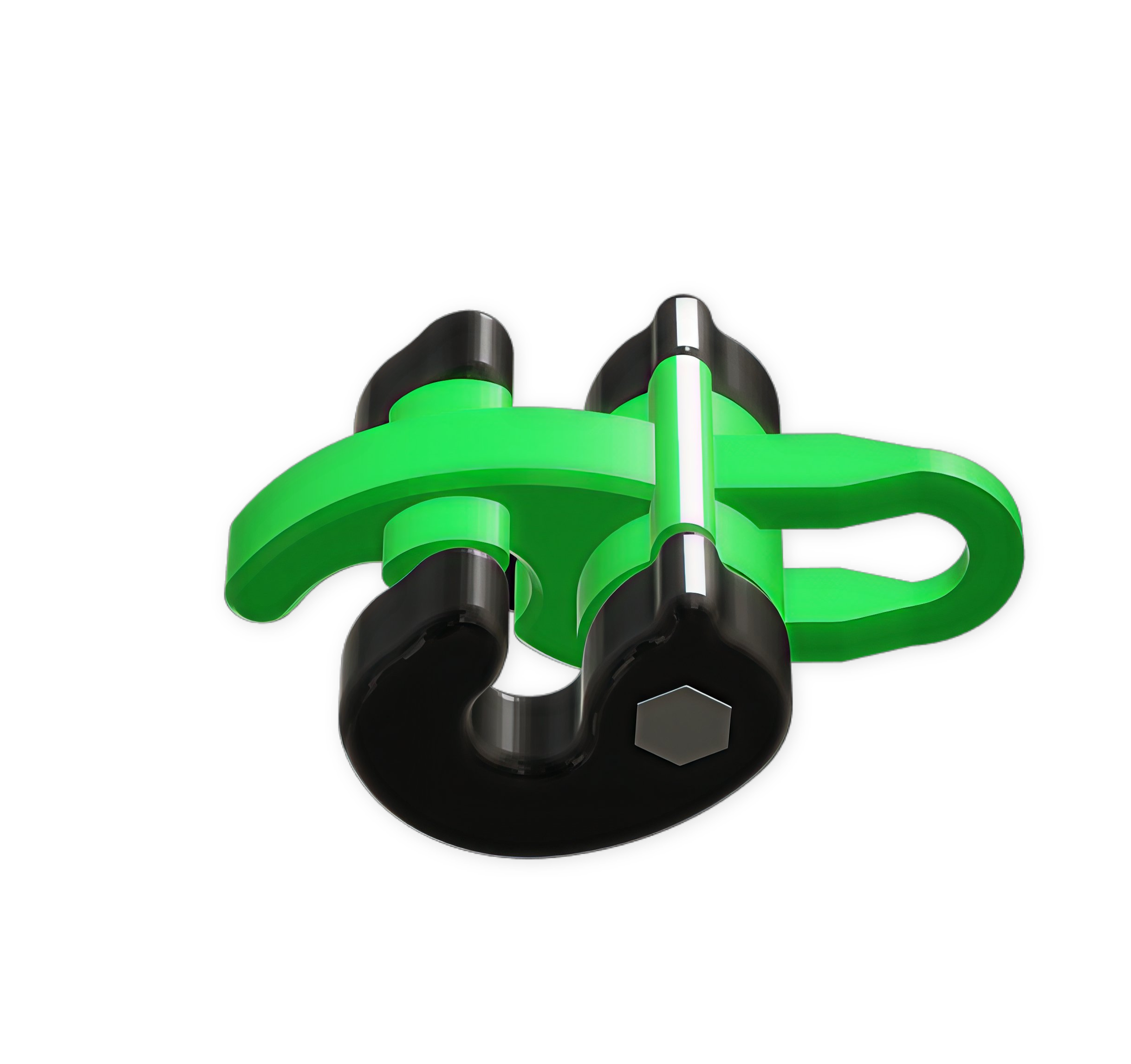

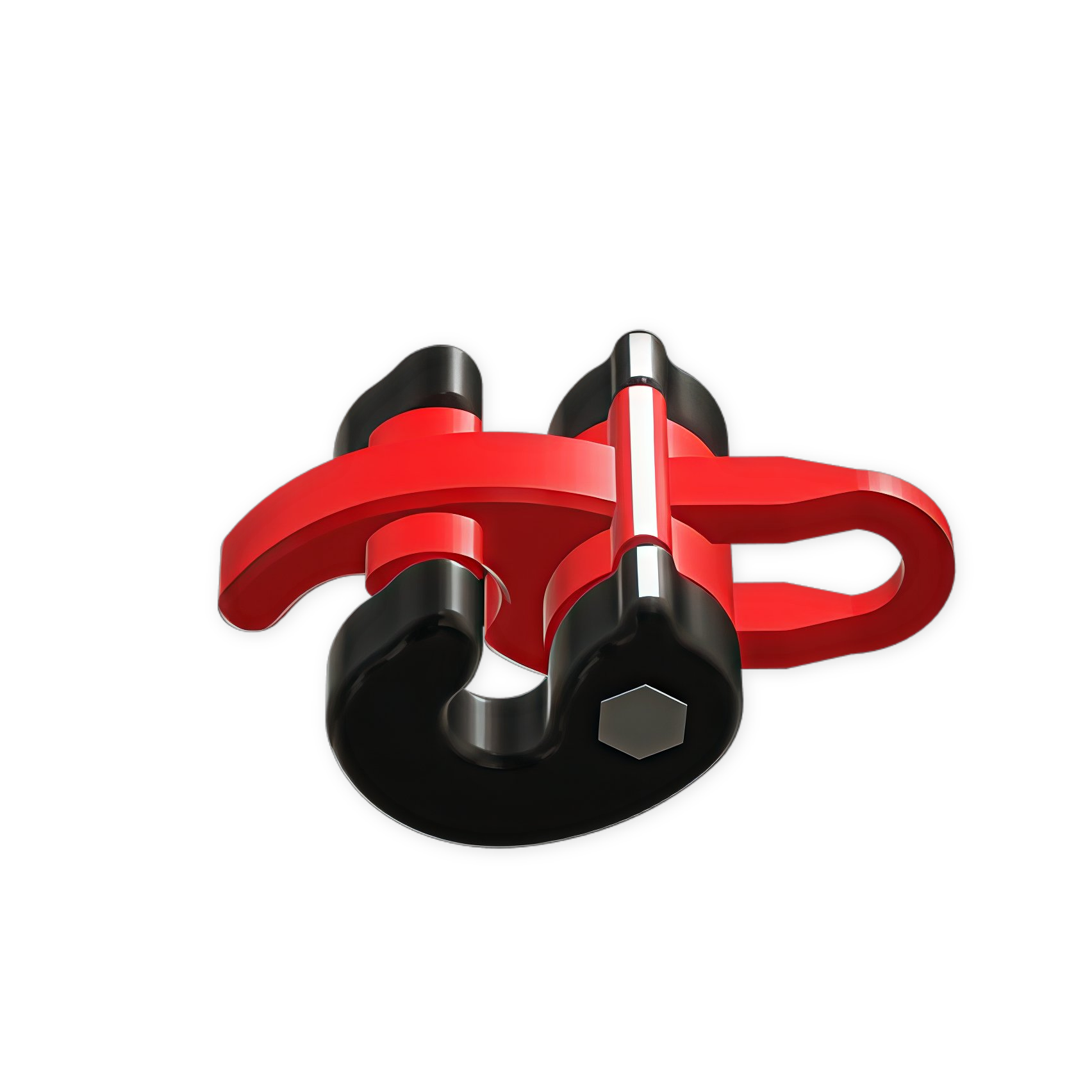

- Cam-Lock NB is made of extremely durable plastic with a built in string radius inside the hooks to prevent string wear.
- Wax bowstring or cable above and below Accessory after installation.
- DO NOT DRY FIRE BOW. IT MAY DISLODGE FROM BOWSTRING AND CAUSE BODILY HARM.
- Less than 8 grains.
